Till now, various polarization constructions and topological domains are obtained in ferroelectric skinny movies or heterostructures, and the polarization switching and subsequent area nucleation are discovered to be extra conducive to constructing energy-efficient and multifunctional polarization constructions.*
Within the article “Ultralow Pressure-Induced Emergent Polarization Constructions in a Versatile Freestanding BaTiO3 Membrane” Jie Wang, Zhen Liu, Qixiang Wang, Fang Nie, Yanan Chen, Gang Tian, Hong Fang, Bin He, Jinrui Guo, Limei Zheng, Changjian Li, Weiming Lü and Shishen Yan introduce a steady and periodic pressure in a versatile freestanding BaTiO3 membrane to realize a zigzag morphology. *
The authors efficiently fabricated freestanding BTO membranes with a zigzag morphology utilizing the water-solvation course of. *
These movies exhibited outstanding curvature-dependent long-range coherence and periodic distributions of polarization. By means of experiments and phase-field simulations, Jie Wang et al. noticed the presence of H–H and T–T polarization boundaries in addition to the formation of large-scale chiral vortex domains. *
Curiously, these singular polar constructions might be induced by ultralow uniaxial and biaxial strains (≈0.5%), which is considerably decrease than the beforehand reported values. The buildup of cost was discovered to cut back the formation vitality, making the singular polar constructions extra steady. *
This sophisticated polarization construction ensuing from the morphological variation of the ferroelectric area offers helpful insights into the polarization construction and ferroelectric area below pressure engineering. *
The wrinkled ferroelectric oxides with completely different strained areas and correlated polarization distributions in addition to tunable ferroelectricity can pave the best way towards novel versatile electronics. *
Understanding the 3D polarization configuration of a wrinkled BTO membrane is essential for revealing the connection between the polarization construction and pressure distribution.
To guage the polarization configuration, piezoresponse power microscopy (PFM) was employed to acquire the piezoresponse below each vertical and lateral modes (known as V-PFM and L-PFM, respectively), and the outcomes are proven in Determine 2a from the article by Jie Wang et al. cited on this blogpost. *
The polarization constructions within the freestanding wrinkled BTO membrane had been characterised by a business scanning probe microscope (SPM).
When the conductive AFM probe (NanoWorld Arrow-EFM) with AC bias was in touch with the pattern, the pattern underwent common expansions and contractions because of the inverse piezoelectric impact, which precipitated the AFM probe to oscillate with the pattern.
The oscillation amplitude and section indicators had been recorded, which corresponded to the piezoresponse energy and polarization orientation, respectively.
Twin AC resonance monitoring PFM (DART-PFM) was used to trace the shift within the contact resonance frequency brought on by the floor roughness, keep away from sign crosstalk, get hold of extra steady piezoelectric indicators with greater sensitivity, and make sure the accuracy of knowledge. The vertical deflection and torsional movement of the probe cantilever had been used to detect the deformation of the pattern, and the IP and OOP polarization elements of the pattern had been obtained.
To find out the area constructions, each the vertical and lateral PFM photographs had been recorded at completely different pattern rotation angles. The native piezoresponse hysteresis loops had been measured by fixing the PFM probe on the chosen place after which making use of a triangular-square waveform, accompanied with a small AC-driven voltage from the probe.
Electrostatic power microscopy (EFM) and scanning Kelvin probe power microscopy (SKPFM) are extensively utilized to acquire the floor potential of supplies by way of a dual-channel technique.
Within the Nap mode, the first-line scanning is used to acquire the floor morphology data of the pattern, after which the probe is lifted to a sure top to detect the long-range power (electrostatic power) sign. The working precept of EFM will be merely interpreted because the section distinction imaging of probe vibration brought on by the electrostatic power between the probe and pattern. In SKPFM, a DC bias is utilized to the conductive tip to stability the floor potential of the pattern. The DC bias is the same as the potential distinction between the tip and pattern, thereby acquiring the relative floor potential distribution of the fabric. Subsequently, EFM qualitatively displays the potential properties of samples, and SKPFM quantifies the potential of samples.*

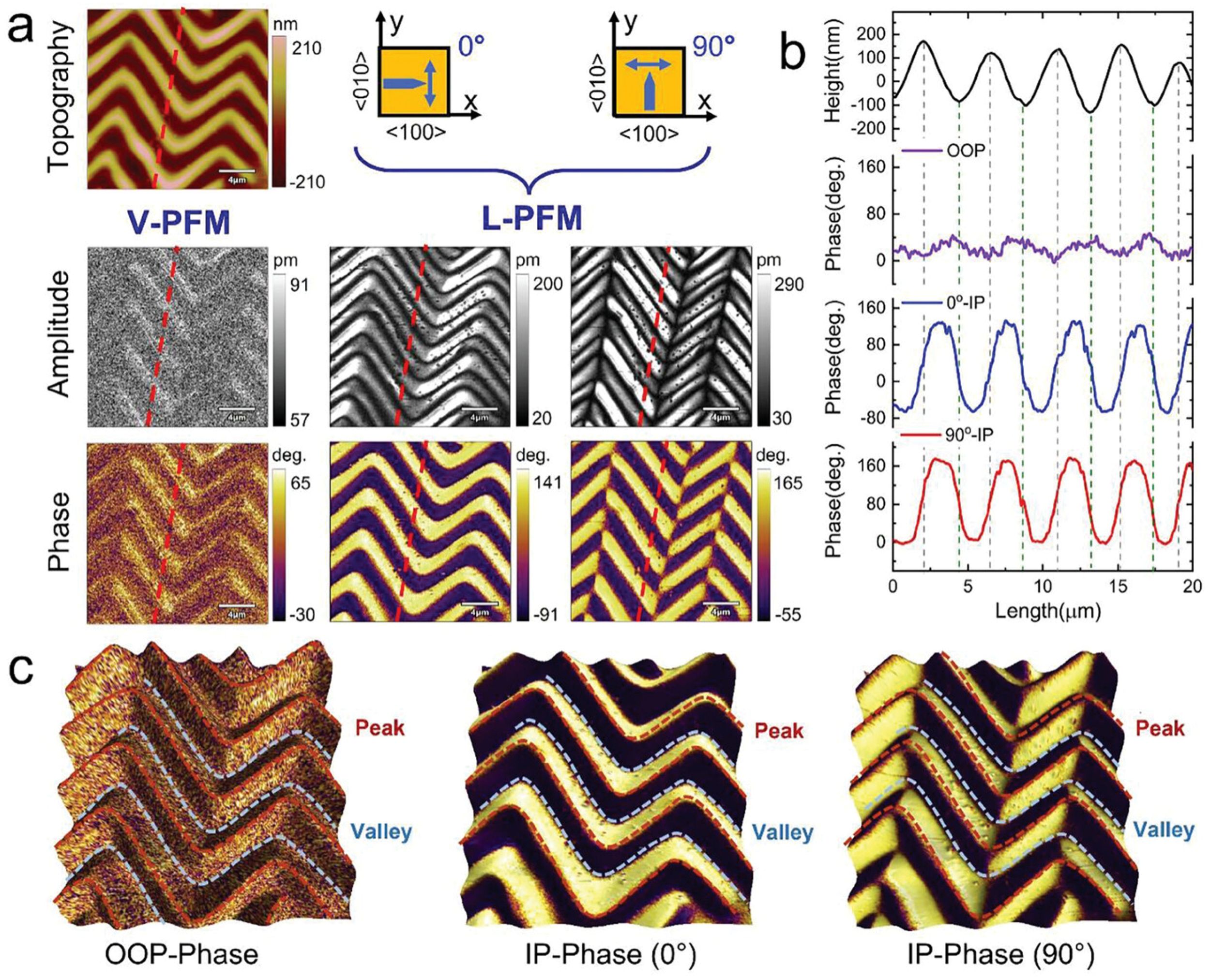

Area constructions of zigzag-wrinkled BTO movie. a) Topographic picture of wrinkled BTO movie, giving rise to zigzag sample. V-PFM and L-PFM amplitude and section photographs for 2 completely different pattern rotation angles of 0° and 90°. b) Line profiles of the peak, OOP section, and IP section (0° and 90°) information (common over 6 pixels) alongside the crimson dotted strains in (a). c) Typical OOP and IP section photographs overlapped on 3D morphology. The crimson and blue dotted curves point out the place of the height and valley, respectively.
