Wi-Fi issues are a few of the trickiest to troubleshoot. Having the proper instrument for the job issues when connectivity is fickle and fleeting. After spending just a few years consulting and troubleshooting for wi-fi, I’ve discovered these 4 instruments to be priceless in my Wi-Fi equipment.
WLAN Pi M4+
The WLAN Pi M4+ instrument is the Swiss Military knife for Wi-Fi troubleshooting. It consists of a prebuilt Raspberry Pi field with a wi-fi card and adjustable modules. Updates are achieved by the neighborhood, for the neighborhood. It has varied preloaded functions, akin to Kismet, a shopper profiler and Grafana.
My favourite manner to make use of WLAN Pi M4+ is for distant captures. The instrument makes use of Energy over Ethernet, so you’ll be able to both plug it right into a PoE-capable port on a swap or an influence injector. The M4+ model additionally has the choice to energy by way of USB-C. From there, you need to use Wireshark, Airtool or the Linux terminal to seize frames.
If these aren’t sufficient options, WLAN Pi M4+ features a hotspot mode to spin up an AP and a server mode for companies akin to Dynamic Host Configuration Protocol. Among the many Grafana profiles, the instrument has a Wi-Fi scanner, web monitoring and WLAN Pi well being dashboards with the choice for customized dashboards. A WLAN Pi GitBook is obtainable right here for all of your troubleshooting adventures.
For Wi-Fi 7 use, the M4+ choice comes with an Intel BE200 card put in, however you may get the Wi-Fi 6 M4 choice too. It is also attainable to customise and construct your individual model. One particular person, Mark Houtz, even made a CBRS-capable model.
Airtool 2

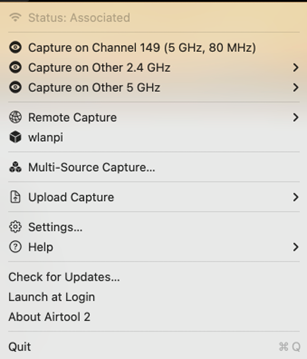

As a result of I discussed Airtool, I ought to present what this utility does and why you must use it. Made by Intuitibits, the corporate that introduced us WiFi Explorer, the Airtool utility enormously simplifies the wi-fi body seize course of for Mac units.
Whereas the appliance appears small, it lets me skip the next steps:
-
Opening up Wi-fi Diagnostics.
-
Clicking to run the seize.
-
Transferring the seize out of my Mac’s momentary listing.
-
Opening up the seize in Wireshark.
Supply: Eva Santos
A further function lets you join an iPhone and different sources for wi-fi captures. You’ll be able to even use Airtool with WLAN Pi to take distant captures simply. No have to click on the up arrow continuously to seek out your earlier terminal instructions. In the event you’re bored with Wi-Fi, it additionally allows you to take Zigbee and Bluetooth captures with the suitable seize units.
Ubiquiti WiFiman
What if you do not have your laptop computer and nonetheless have to troubleshoot shortly? Many Wi-Fi scanning apps can be found within the app shops, however Ubiquiti WiFiman stands out. It is compact and has extra perks, akin to exhibiting latency for particular functions or the entire community topology.

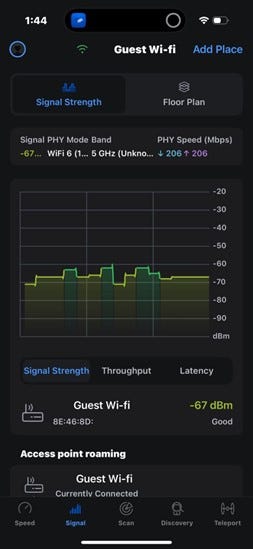

I like this app for shortly familiarizing myself with the ISP and upstream units current. In the event you hook up with an SSID, it exhibits a dwell feed of RSSI measurements over time. It will probably additionally run a velocity check for Wi-Fi or mobile connections after which present the roaming exercise between them.
Supply: Eva Santos
A WiFiman Wizard unlocks a further Wi-Fi scan function, however the free app gives worth nonetheless. As a substitute of getting the Wizard, I recommend getting the following instrument and pairing it with a wi-fi card.
WiFi Explorer Professional 3
Are you severe about troubleshooting? WiFi Explorer Professional 3 is the appliance for you. Much like Airtool, this instrument feels smooth and straightforward to make use of. In distinction, WiFi Explorer permits customers to see all lively Wi-Fi networks directly in a spectrum-oriented view. What differentiates this instrument is the thoughtfulness put into the consumer expertise.

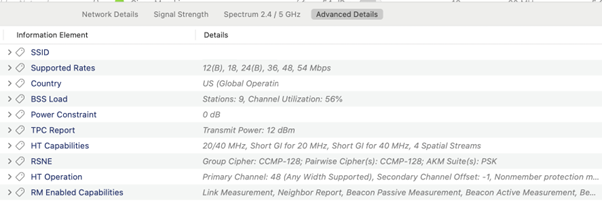

For instance, the Superior Particulars panel exhibits data given by 802.11 body tags in a simplified format. That is helpful for verifying safety suites utilized by SSIDs or if 802.11k, 802.11r or 802.11w are in use.
Supply: Eva Santos
When RF interference arises, the instrument permits customers to attach a spectrum analyzer that then shows a waterfall or FFT view. WiFi Explorer Professional additionally helps distant captures like Airtool. Whereas Intuitibits initially constructed the appliance for Mac, a Home windows model is now out there.
Conclusion
These are my must-have instruments for Wi-Fi troubleshooting. They’re light-weight, straightforward to make use of and feature-rich. I hope it helps anybody who finds themselves misplaced whereas troubleshooting Wi-Fi.
